Allen Bradley AC Drive 25A-D024N104


  •  In Stock!

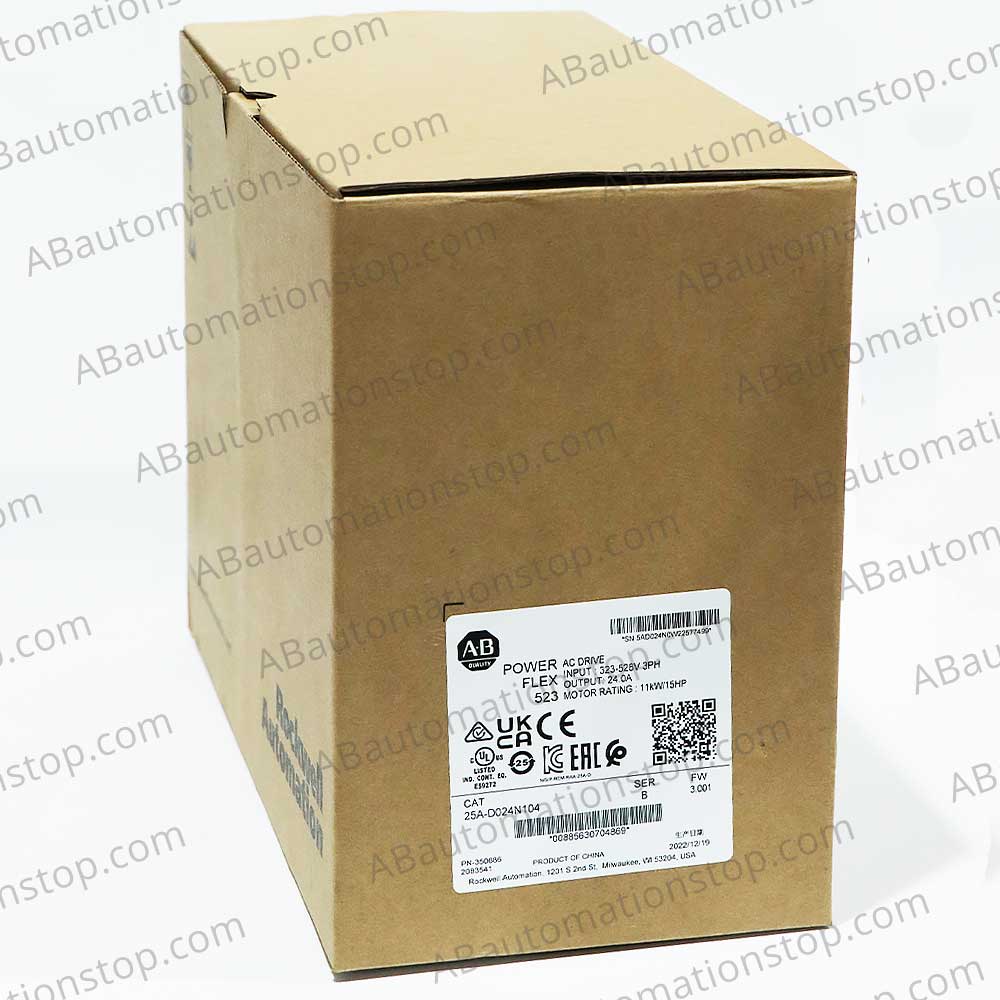

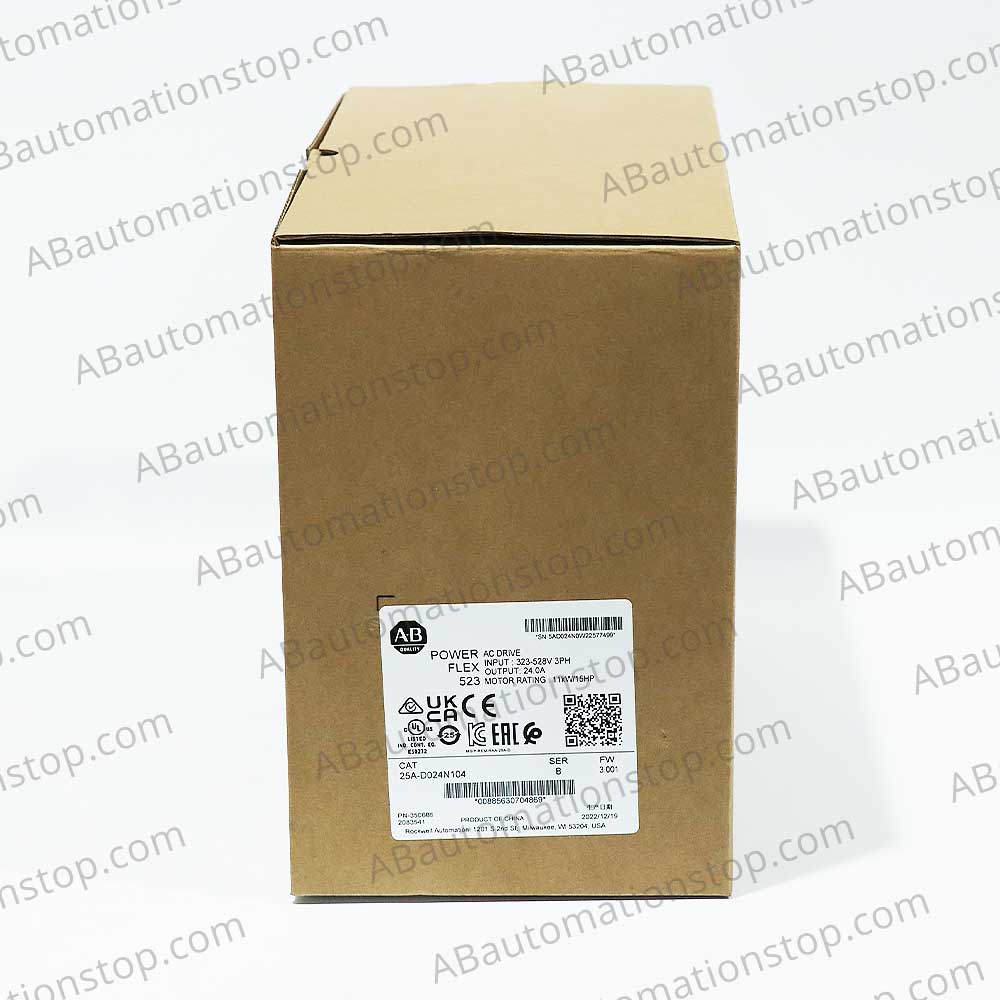

  • NEW (Factory Sealed)
  • Manufacturer: Allen Bradley – Drives
  • Product Type: AC Drive
  • Part Number: 25A-D024N104
  • Series: PowerFlex 523
  • UPC: 00885630704869
SKU: 25A-D024N104 Category:


Allen-Bradley’s 25A-D024N104 is an Input / Output PowerFlex Adjustable Frequency AC drive belonging to the product series of PowerFlex 523 AC drives that can control the motors’ motion.

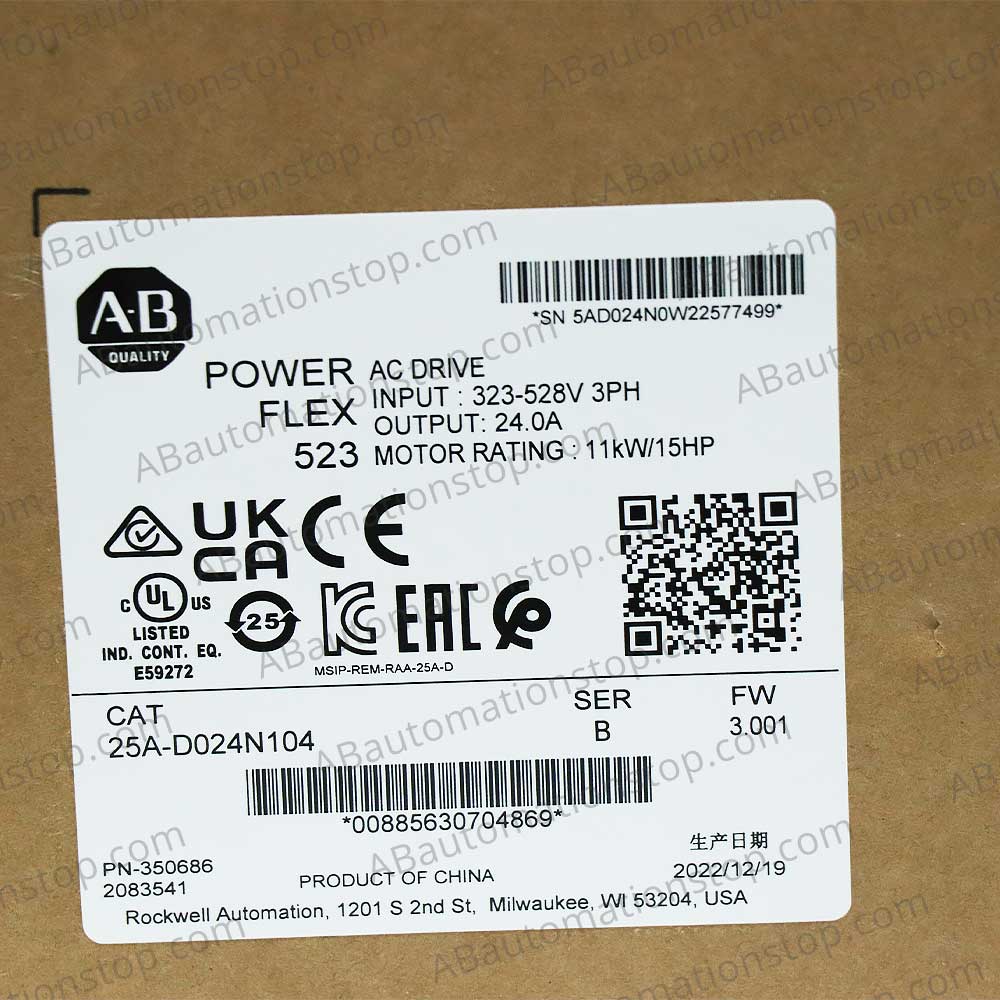

Here are the technical specifications for the Allen-Bradley PowerFlex 523 25A-D024N104 AC drive:

  • Power Rating: 11 kW (15 hp) (Normal and Heavy-duty)
  • Voltage Rating: 480 VAC, 3 Phase
  • Input Voltage: 323-528V AC
  • Output Current: 24 Amps
  • Interface Module: Standard
  • Protection Rating: IP20 NEMA / Open Type
  • Frame: Size D
  • EMC Filtering Options: No Filter
  • Weight: 4 kg (8.8 lbs)

This 3-phase Input / Output drive shows a maximum output power rating of 11 kilowatts for both normal and heavy-duty performance.

This drive has several Input / Output options, including digital and analog options.
The analog options include a single input powered through 0 to 10 volts or 4 to 20 milliamperes, and a designated output option has the functionality to compare speed with another drive.
This drive has 5 digital inputs including a single stop function input and 4 programmable function inputs. It also has a single digital relay output. This standard interface module can conserve energy via a common DC Bus.

Allen-Bradley’s 25A-D024N104 drive has an accessibility feature with multiple communication options that strengthen its ability to connect to modern control systems. This drive’s design is easily programmable and can be configured with new settings due to the availability of changeable control and power modules. Therefore, you can simply connect the drive with a PC via a USB port to update the drive’s settings.

The 25A-D024N104 drive can be controlled by several motor controls such as sinusoidal pulse width modulation, volts per hertz, and sensorless vector control. And can be connected with SCADA and HMI systems with ease.
