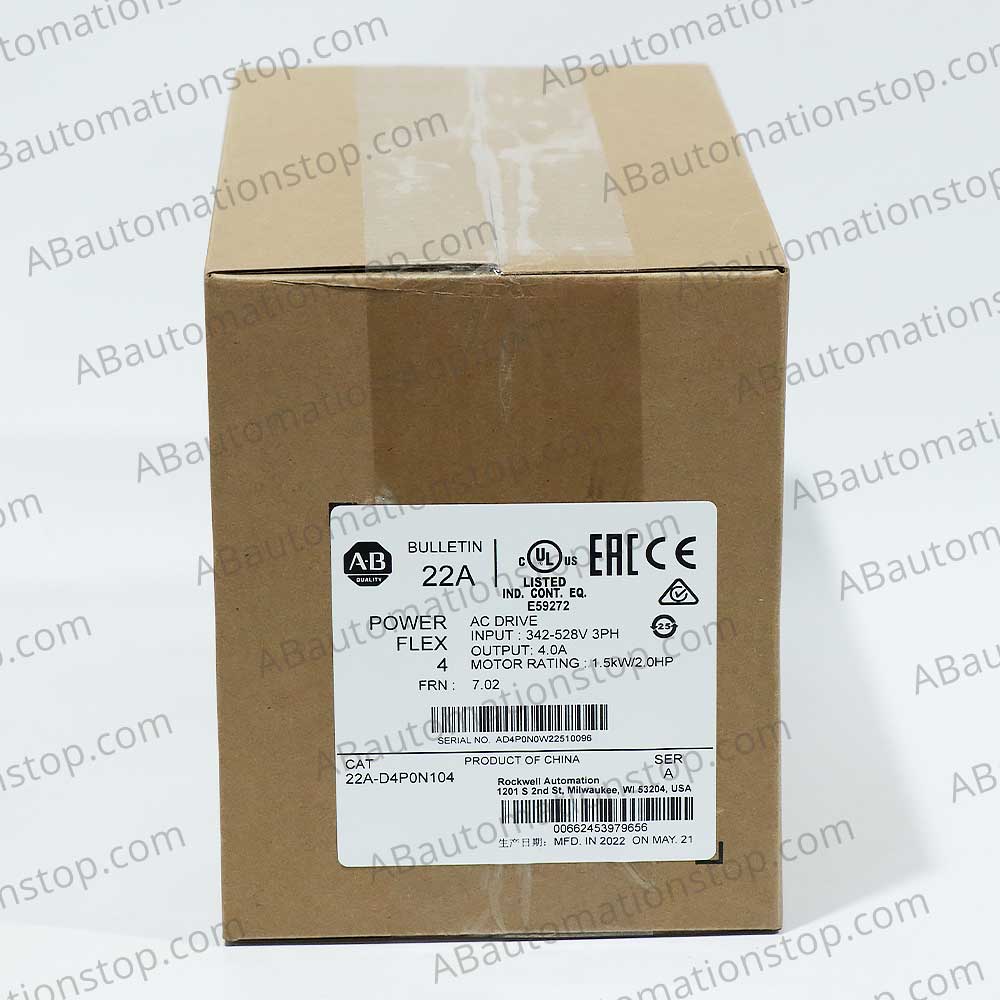

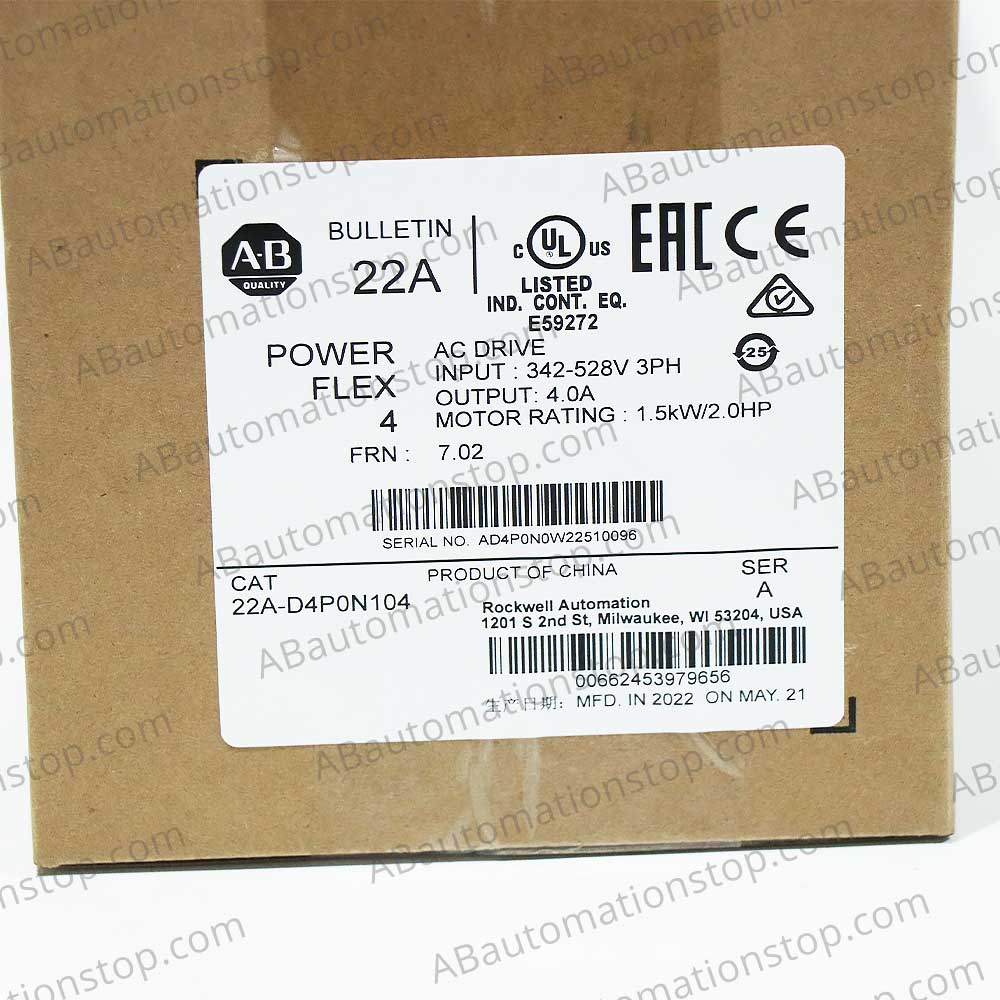

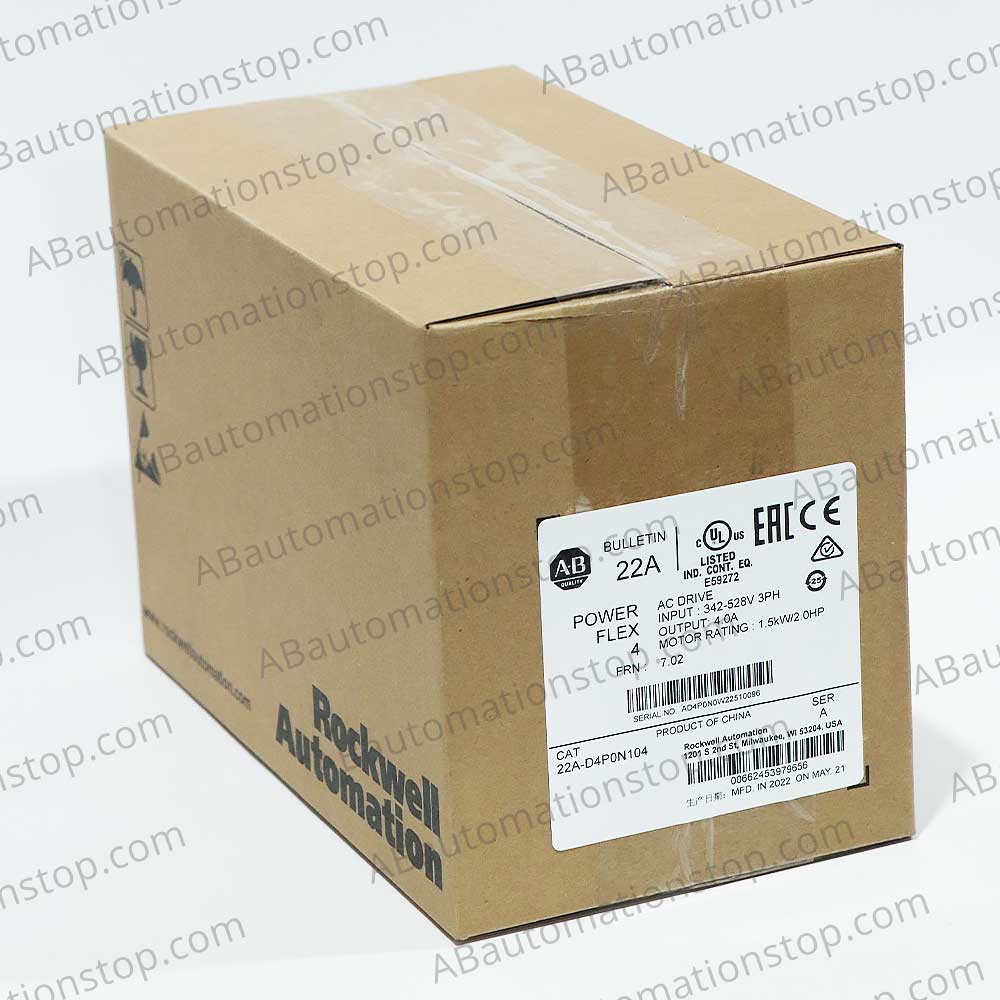

Allen Bradley Drive 22A-D4P0N104


  •  In Stock!

  • Has 480v ac of voltage.
  • Manufacturer: Allen Bradley – Drives
  • Product Type: Drive
  • Part Number: 22A-D4P0N104
  • Series: PowerFlex 4
  • UPC: 00662453979656
SKU: 22A-D4P0N104 Category:


The Allen-Bradley 22A-D4P0N104 drive is designed to meet global original equipment manufacturer and end-user requirements for simplicity, space savings, and cost efficiency. It is a cost-effective alternative for speed control of applications such as machine tools, fans, pumps, conveyors, and material handling systems.

The drive has a rating of 480V AC and takes a 3-phase input. It produces 2 units of horsepower.

It has an integrally fixed keypad featuring a four-digit display with ten additional LED indicators, providing an excellent display of drive status information. The start-up has further been simplified by providing an active potentiometer directly out of the box.

The Allen-Bradley 22A-D4P0N104 drive features an integral RS-485 communication port which is compatible with PC tools. These PC tools can aid the technicians in programming, monitoring, and troubleshooting a PLC network. In addition to these, other communication ports such as ControlNet, DeviceNet, EtherNet/IP, Profibus DP, BACnet, and LonWorks are provided as optional additions.

It fits into an IP20, NEMA/UL open enclosure, providing a lot of durability and stability and making the drive fit for different manufacturing environments.
The mounting drives are placed next to one another with no air gaps. This orientation saves valuable panel space.
It should be noted that the drive comes with a brake drive that has been provided in place of a CE compliant filter. The drive is capable of providing exceptional speed regulation even at high loads and high torque levels across the speed range of the drive. Additionally, it has been fitted with 10 fuses.

The Allen Bradley 22A-D4P0N104 AC drive from the PowerFlex 4 series of products. At a three-phase input of 380-480V, this AC drive has a current rating of 4.0A with a power rating of 1.5Kw, or the equivalent of 2.0Hp.

The enclosure of this Allen Bradley AC drive has a rating of NEMA/UL Type open. This enclosure has an Ingress Protection rating of IP 20. Due to the enclosure, the Allen Bradley 22A-D4P0N104 AC drive is capable of being mounted via a panel mount.

This AC drive has a total of 4 preset speeds. The carrier frequency of the PowerFlex 4 AC drives ranges from 2-16kHz. Additionally, the control voltage is rated at 24V sink/source.

This AC drive has 3 fixed discrete inputs for a start, stop, and rev. It also has 2 fully programmable discrete inputs. Additionally, it has 1 unipolar analog input with a rating of 0-10V or 4-20 mA.

The analog response of this Allen Bradley AC drive is 2Hz or 500ms.

The relay output configuration for this device consists of 1 normally open (NO)/normally closed (NC) dry contact.


We have more than listed, send us a message if you need better price or more quantity, we carry 100 193 140M 140G 440R 800F 800FD 150 194e 800t 440E 440G 440N 440K 1606 700 1734 1746 1747 1756 1762 1763 1766 1769 1794 2080 2085 2711 5069 PowerFlex 4/40/400/523/525/700/753/755 etc.
