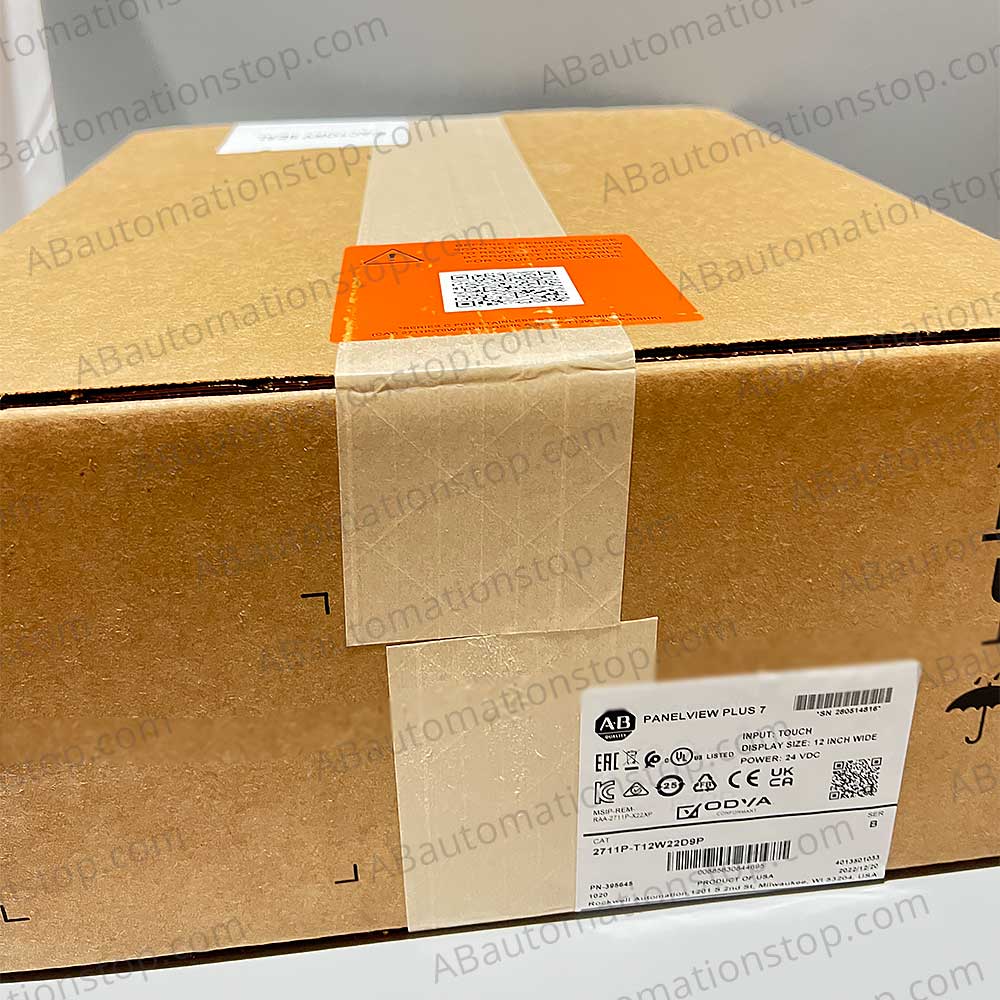

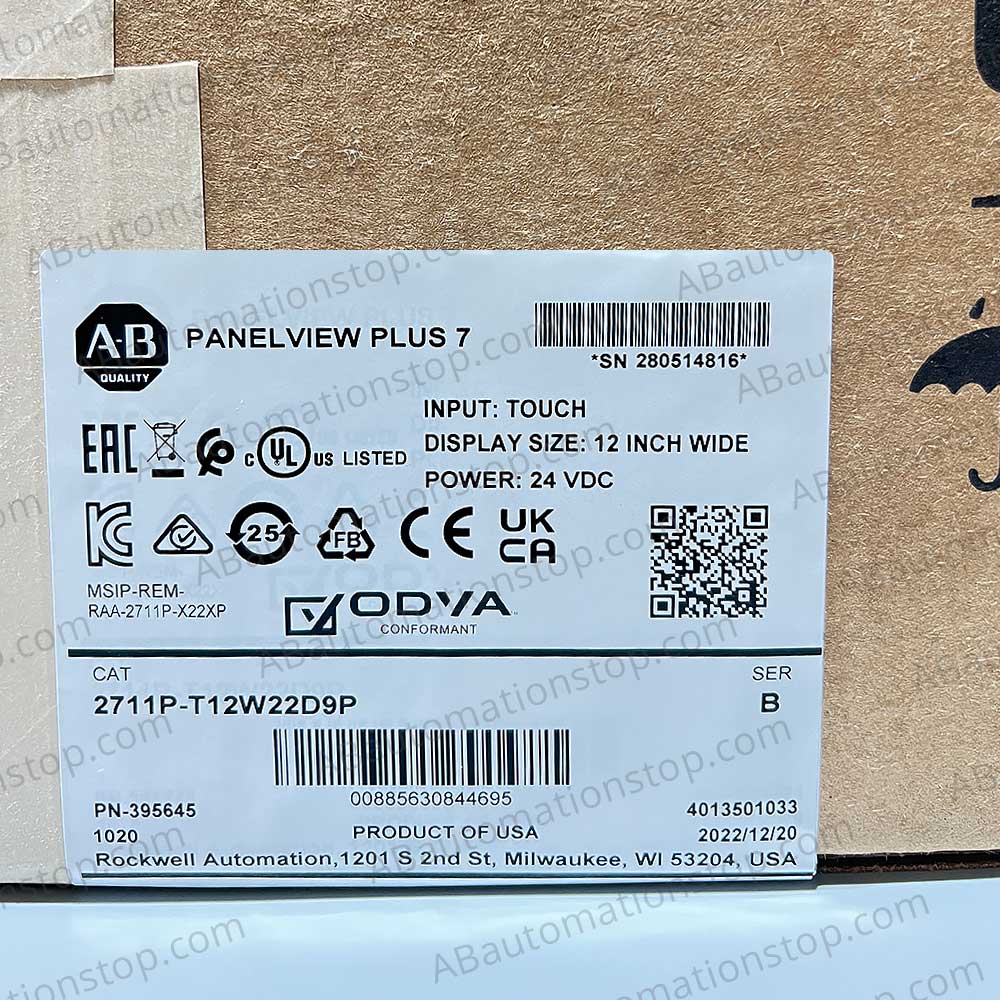

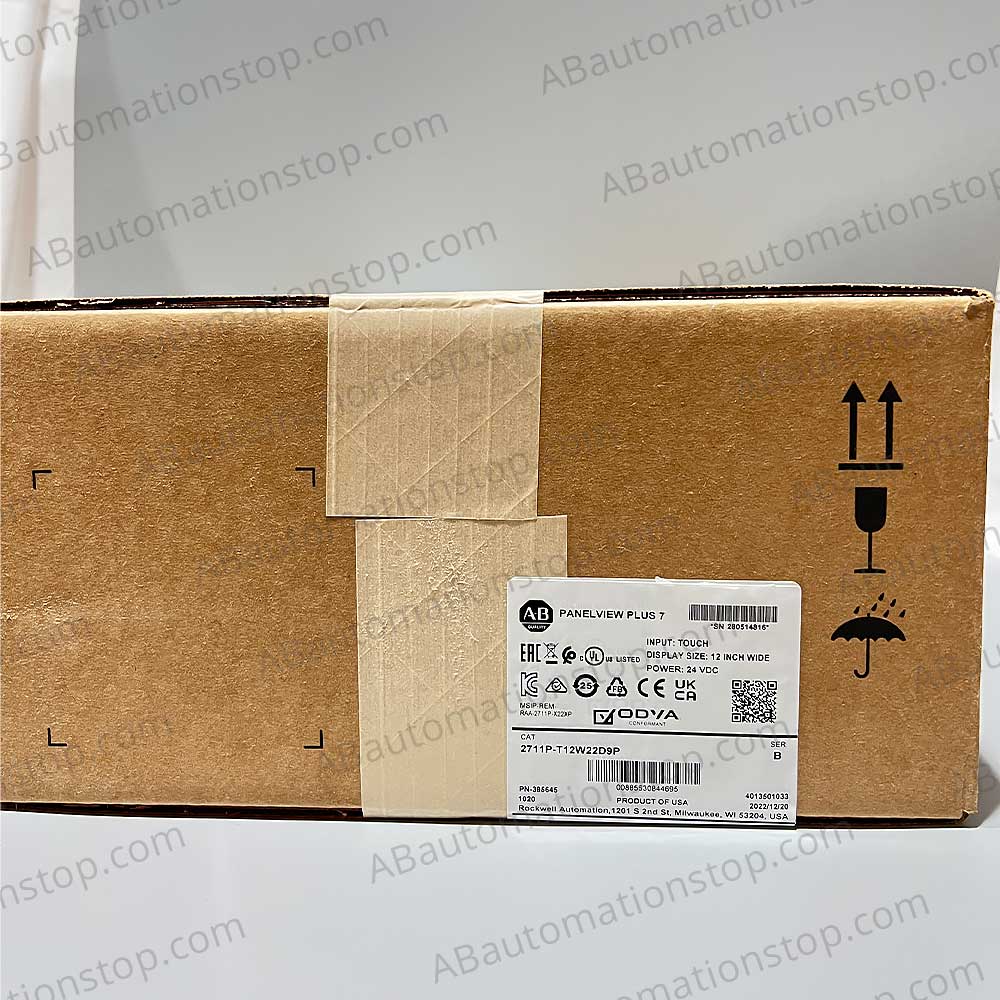

Allen Bradley HMI 2711P-T12W22D9P


  •  In Stock!

  • Comes with DC of power.
  • Manufacturer: Allen Bradley – HMI
  • Product Type: HMI / Operator Interface
  • Part Number: 2711P-T12W22D9P
  • Series: Panelview Plus 7
  • UPC: 00885630844695
SKU: 2711P-T12W22D9P Category:


2711P-T12W22D9P is an operator terminal designed by Allen-Bradley and part of the PanelView Plus 7 series. PanelView Plus 7 operator terminals are primarily used as an interfece device between an operator and industrial machinery. These terminals monitor and control devices within the industrial setting connected to ControlLogix controllers on an Ethernet / IP network.

The Allen-Bradley 2711P-T12W22D9P PanelView Plus 7 operator terminal utilizes a touchscreen interface as its primary input type. The size is 12.1 inches and has a wide aspect ratio color display type. To display color is equipped with an active color matrix and a thin film transistor (TFT) coating. The effective viewing area for the embedded screen is 261 x 163 millimeters. Also, the touchscreen interface can display a resolution of 1280 x 800 pixels WXGA. It has a 16:10 aspect ratio.

To interact with the Ethernet network, the 2711P-T12W22D9P is equipped with 2 Ethernet DLR ports. Also, this terminal comes with 3 embedded USB ports (2 hosts and 1 device).

This particular terminal requires DC (direct current) power.

Additionally, this Allen-Bradley terminal is a performance model. The Allen-Bradley 2711P-T12W22D9P performance operator terminal has internal memory included with it.

The internal memory available to this product’s user includes 1GB of random access memory (RAM) and five hundred and twelve 512MB of user memory.

The 2711P-T12W22D9P performance terminal weighs approximately 2.54kg and has dimensions that measure 240 x 340 x 69.6mm.


We have more than listed, send us a message if you need better price or more quantity, we carry 100 193 140M 140G 440R 800F 800FD 150 194e 800t 440E 440G 440N 440K 1606 700 1734 1746 1747 1756 1762 1763 1766 1769 1794 2080 2085 2711 5069 PowerFlex 4/40/400/523/525/700/753/755 etc.
