Description

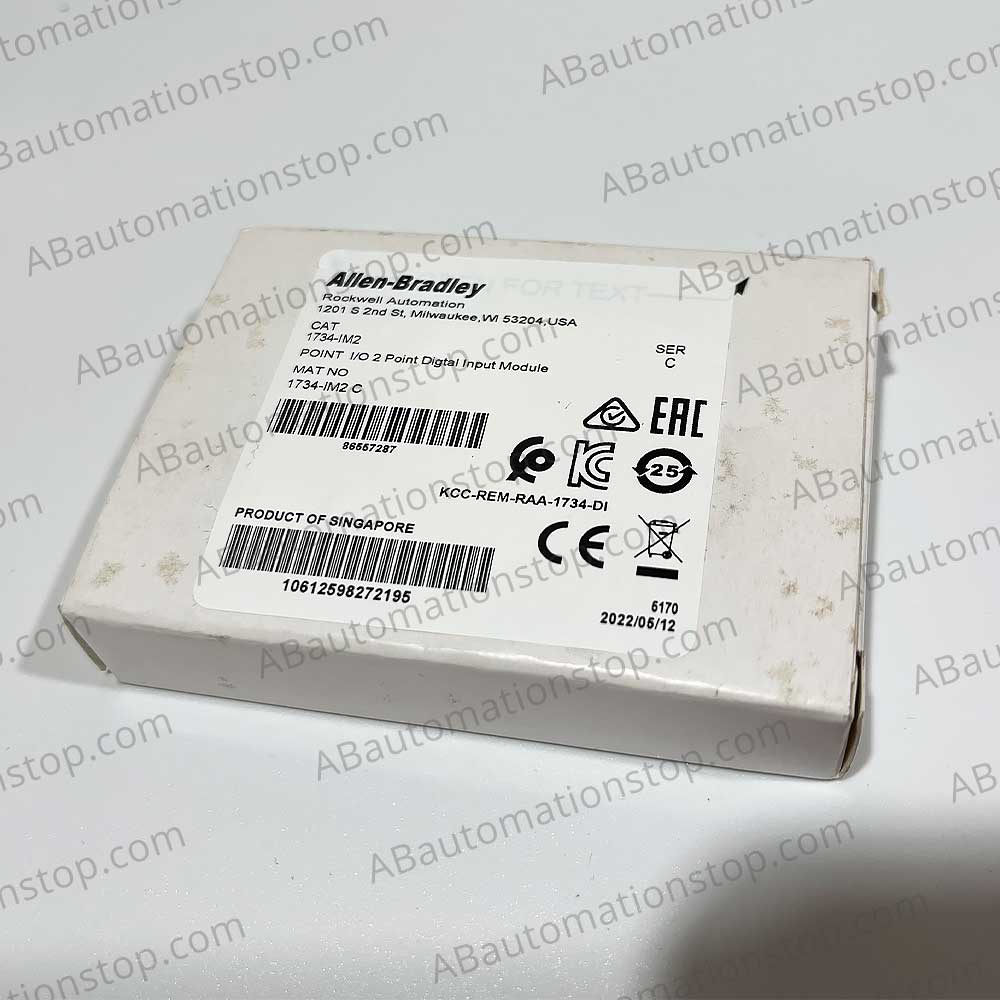

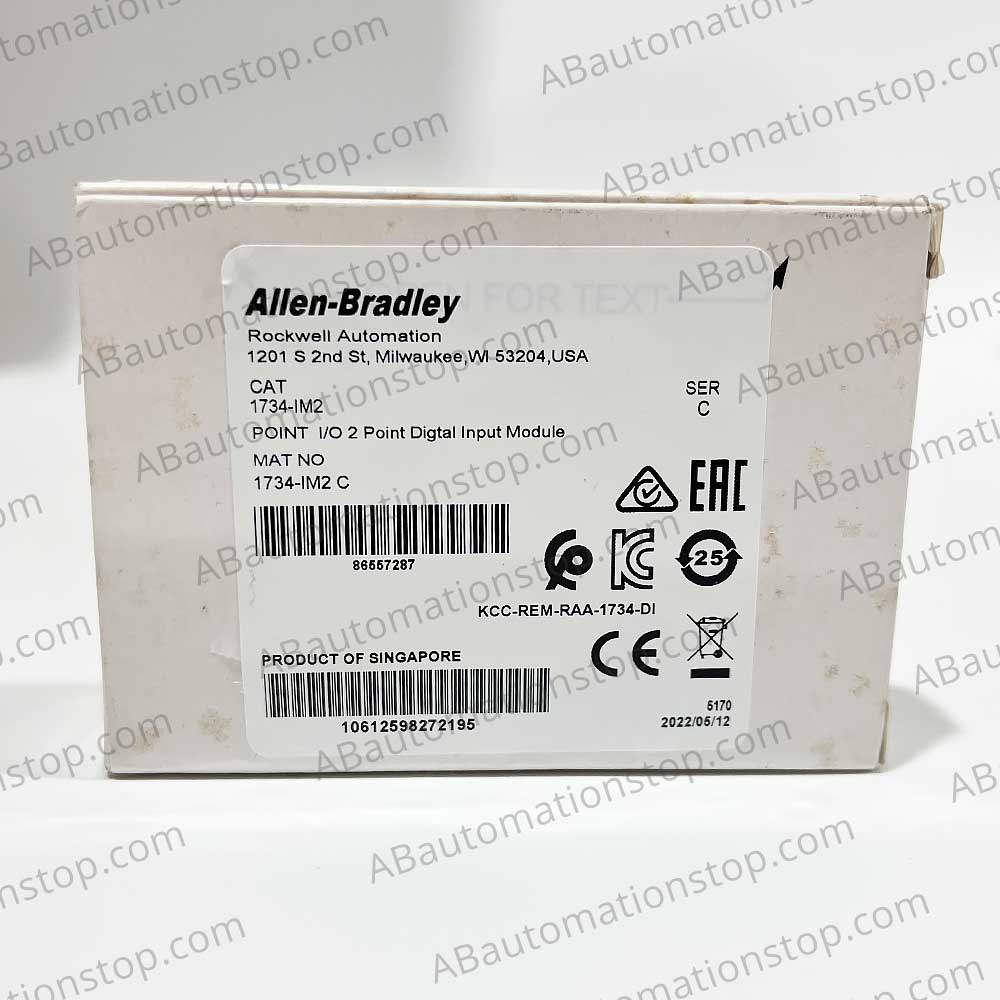

The Allen-Bradley 1734-IM2 is a POINT digital AC input module with 2 non-isolated and sink inputs, a key switch position of 8, and real-time status indicators. It has an open-type enclosure and can be mounted using a DIN rail mount. The module is only compatible with 14 to 22 AWG solid or stranded copper wire rated and can be installed on a 1734-TB, 1734-TBS, 1734-TOP, or a 1734-TOPS terminal base unit.

It has an external AC power supply voltage of 220 Volts AC at 60 Hertz and an input voltage range of 159 to 264 Volts AC at 47 to 63 Hertz.

In on-state, the voltage ranges from 159 to 264 Volts AC, with a nominal voltage of 220 Volts AC, and the current ranges from 6.2 mA at 159 Volts AC and 60 Hertz to a maximum of 10.2 mA at 264 Volts AC and 60 Hertz, with a nominal current of 8.5 mA at 220 Volts AC and 60 Hertz. In off-state, the module’s maximum voltage is 43 Volts AC and its maximum current is 2.9 mA.

The 1734-IM2 has a maximum POINT bus current of 75 mA at 5 Volts DC and a nominal input impedance of 22.3 kiloohms. Its maximum power dissipation is 0.48 W at 264 Volts AC and its maximum thermal dissipation is 1.63 BTU/hour at 264 Volts AC. It has a continuous isolation voltage of 240 Volts from the field-side to the system and a non-condensing relative humidity of 5 to 95%.

The operating temperature range of the 1734-IM2 is from -20 to 55 degrees Celsius, with a non-operating temperature range of -40 to 85 degrees Celsius. Its operating vibration is 5 g at 10 to 500 Hertz, its operating shock is 30 g, and its non-operating shock is 50 g.

The 1734-IM2 has a weight of around 30.9 g or 1.09 ounces and measures 2.21 x 0.47 x 2.97 inches.
