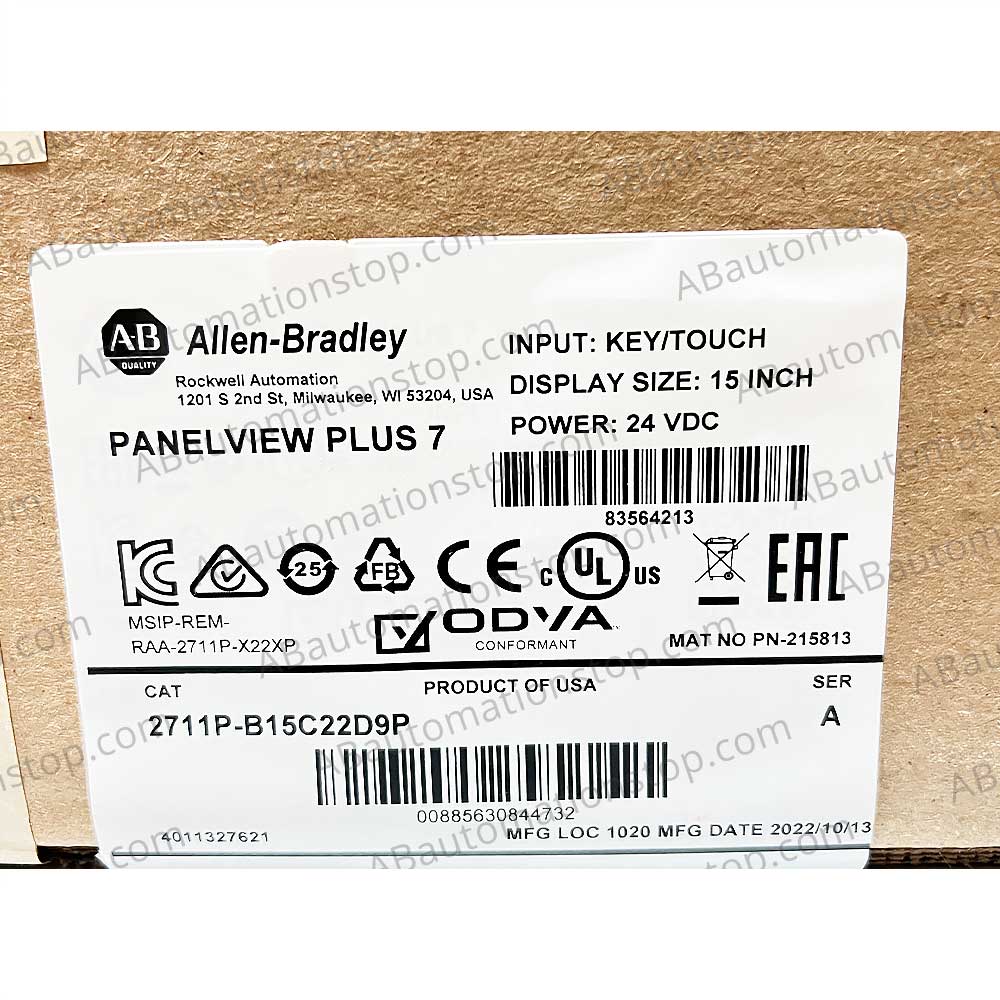

Allen Bradley HMI 2711P-B15C22D9P


  •  In Stock!

  • Comes with power of dc.
  • Manufacturer: Allen Bradley – HMI
  • Product Type: HMI / Operator Interface
  • Part Number: 2711P-B15C22D9P
  • Series: Panelview Plus 7
  • UPC: 00885630844732
SKU: 2711P-B15C22D9P Category:


The 2711P-B15C22D9P is an Allen Bradley PanelView Plus 7 Performance Operator Terminal.

This terminal has both touch and keypad HMI (human machine interface) accessibility. The terminal has a TFT (thin film transistor) display that measures 15 inches, can display color, and has a 4:3 aspect ratio.

The viewing area of this screen is 304 x 228mm, or 12 x 9.0 inch, with eighteen (18)-bit graphics and a 1024 x 768 pixel image resolution.

The analog resistive touch screen has an operational lifespan of one million (1,000,000) presses at 100 grams of force. The screen brightness is typically 300 nits with a backlight. The backlight is a solid state white light emitting diode (LED) that is irreplaceable. It has a life of fifty thousand (50,000) hours at 40 degrees Celsius and half brightness, while the actual battery life of the terminal is 4 years while being kept at 25 degrees Celsius. The battery has a real-time clock backup that is replaceable with a lithium cell CR2032, usually in a coin shape.

This terminal has an input voltage range of 100V AC to 240 volts AC and 18V DC to 30V DC. The nominal DC input voltage of this device is 24V DC.

This terminal has a rated power consumption of 50W, or 2.1A at 24V DC.

The physical dimensions of this operator terminal measure 322 x 484 x 69.6mm.
The weight is approximately 4.14kg.
The operating temperature of 0 ~ 55℃.


We have more than listed, send us a message if you need better price or more quantity, we carry 100 193 140M 140G 440R 800F 800FD 150 194e 800t 440E 440G 440N 440K 1606 700 1734 1746 1747 1756 1762 1763 1766 1769 1794 2080 2085 2711 5069 PowerFlex 4/40/400/523/525/700/753/755 etc.
